Crimping Hydraulic Hose Machine Manual Hose Crimper Diesel Pipe Crimping Machine

  • 1
  • 2
  • 3

Brand Name : MENSION

Model Number : MS-51KH

Certification : CE RoHS

Place of Origin : CN

MOQ : 1 Set

Payment Terms : L/C,D/A,D/P,T/T,Western Union,MoneyGram

Supply Ability : 1000 Sets Per Month

Delivery Time : 2 - 7 Working Days

Packaging Details : One Plywood For One Set

Price : Contact Us

Product Name : 51KH Manual Hose Crimping Machine

Crimping Range : 14 - 87mm

Hose Size : 1/4 - 2inch

Die Sets : 10

Color : Blue

Max. Opening : 30mm

Crimping Force : 500T

System Pressure : 31.5Mpa

Power : 3KW

Size : 670*430*820mm

Weight : 260Kg

HS Code : 847780

Contact Now

MS-51KH Manual Hose Crimping Machine
Product Overview
The MS-51KH is a versatile manual hose crimping machine featuring button controls with optional automatic crimping capability. Known for its multiple functions and cost-effectiveness, this model has become one of our best-selling crimping machines.

Key Features
  • Simple structure for easy maintenance
  • Quick die change system improves efficiency
  • Aluminum shell copper wire motor for superior heat dissipation
  • Dual operating modes for enhanced convenience
Technical Specifications
Model MS-51KH Manual Hose Crimper Machine
Crimping Range 14 - 87 (mm)
Crimping Force 500 (T)
Hose Size 1/4 - 2 (inch)
Max. Opening 30 (mm)
Die Sets 10
Die Set Type 51
System Pressure 31.5 (Mpa)
Accuracy 0.05 (mm)
Control MS
Standard Voltage 220 (V) / 380 (V)
Motor Power 3 (KW)
Length 670 (mm)
Width 430 (mm)
Height 820 (mm)
Weight 260 (KG)
Crimping Hydraulic Hose Machine Manual Hose Crimper Diesel Pipe Crimping Machine

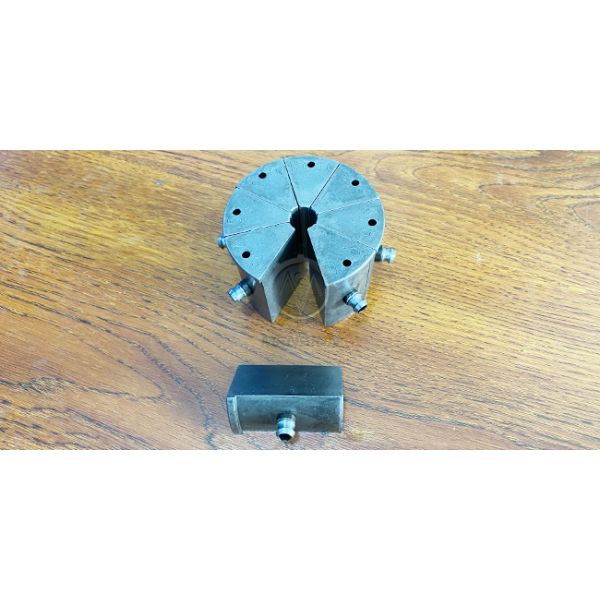

51 Crimping Machine Die Sets
Die No. Crimping Range Length
6* 6 - 8mm 35
8* 8 - 10mm 35
10* 10 - 12mm 35
12* 12 - 15mm 35
15 15 - 19mm 60
19 19 - 23mm 60
23 23 - 26mm 60
26 26 - 31mm 60
31 31 - 36mm 70
36 36 - 41mm 70
41 41 - 47mm 70
47 47 - 55mm 80
55 55 - 63mm 80
63 63 - 69mm 80
69* 69 - 76mm 100
Important Notes
  • * indicates non-standard die sets
  • Customized die sets are available upon request
  • Special voltage options include 110V, 208V, 240V, and 415V
