Large Hose Crimper Hydraulic Hose Fitting Crimping Machine P150

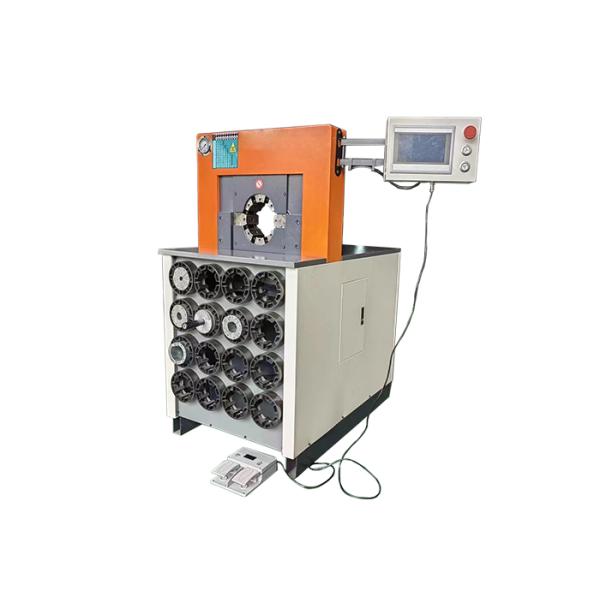

HYDRAULIC HOSE CRIMPER MACHINE P150
DESCRIPTION
MS-P150 is a heavy duty hydraulic crimping machine with super crimping force for extreme high pressure 2 inch 6 tensile steel spiraled hydraulic rubber hose assembly making. Especially when pressing big elbow fitting and coupling, P150 will be the ideal choice.
ADVANTAGES
- High stable and performance micro computer, maintains optimal condition even after years of usage
- Mold can be changed and installed with self-designed fork, significantly improving working efficiency
- Crimper with large foot pedal, more convenient for holding large diameter hoses
- Top quality material for die sets and hydraulic cylinder, long service life with low maintenance cost
TECHNICAL DATA
| Model |
MS-P150 AC Hose Crimping Machine |
| Crimping Range |
14 - 87 (mm) |
| Crimping Force |
780 (T) |
| Hose Size |
1/4 - 2 1/2 (inch) 6 Spiral |
| Max. Opening |
61 (mm) |
| Die Sets |
14 |
| Die Set Type |
P150 |
| System Pressure |
31.5 (Mpa) |
| Accuracy |
0.01 (mm) |
| Control |
UC |
| Standard Voltage |
380 (V) Three Phase |
| Motor Power |
3.75 (KW) |
| Length |
720 (mm) |
| Width |
970 (mm) |
| Height |
1600 (mm) |
| Weight |
1020 (KG) |
P150 HOSE CRIMPER DIE SETS
| Die No. |
Crimping Range |
Length |
| 6 * |
6 ... 8mm |
55mm |
| 8 * |
8 ... 10mm |
55mm |
| 10 * |
10 ... 12mm |
55mm |
| 12 * |
12 ... 14mm |
55mm |
| 14 |
14 ... 16mm |
55mm |
| 16 |
16 ... 19mm |
55mm |
| 19 |
19 ... 22mm |
55mm |
| 22 |
22 ... 26mm |
70mm |
| 26 |
26 ... 30mm |
70mm |
| 30 |
30 ... 34mm |
70mm |
| 34 |
34 ... 39mm |
75mm |
| 39 |
39 ... 45mm |
75mm |
| 45 |
45 ... 51mm |
90mm |
| 51 |
51 ... 57mm |
90mm |
| 57 |
57 ... 63mm |
100mm |
| 63 |
63 ... 69mm |
110mm |
| 69 |
69 ... 74mm |
110mm |
| 74 |
74 ... 80mm |
110mm |
| 78 * |
78 ... 87mm |
110mm |
• "*" indicates non-standard mold
• Crimping range is based on standard mold
• Customized die sets with different shapes and sizes are available
• Customized voltage 110V, 208V, 220V, 240V, 415V are available
CRIMPING HEAD WITH ADVANCED DESIGN
Different from traditional hydraulic crimping unit design, P150 utilizes vertical movement technology for dies and master die. This advantage makes positioning easier and enables pressing of large elbow or shaped fittings.
NEW PROCESSING FOR DIE SETS
All die sets use surface polishing treatment after high frequency processing, protecting the galvanized layer of couplings during pressing. This results in hose assemblies with better anti-rust capability.

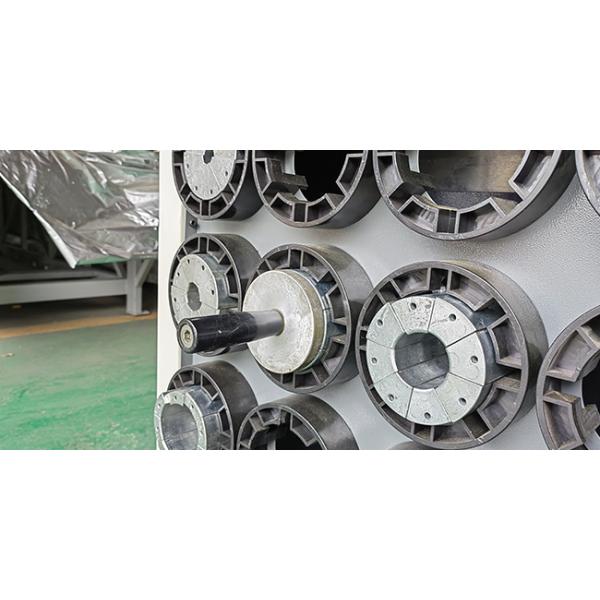

QUICK CHANGE TOOL AND MACHINE RACK
Makes die set changing more convenient and provides safe storage for die sets, significantly improving productivity.

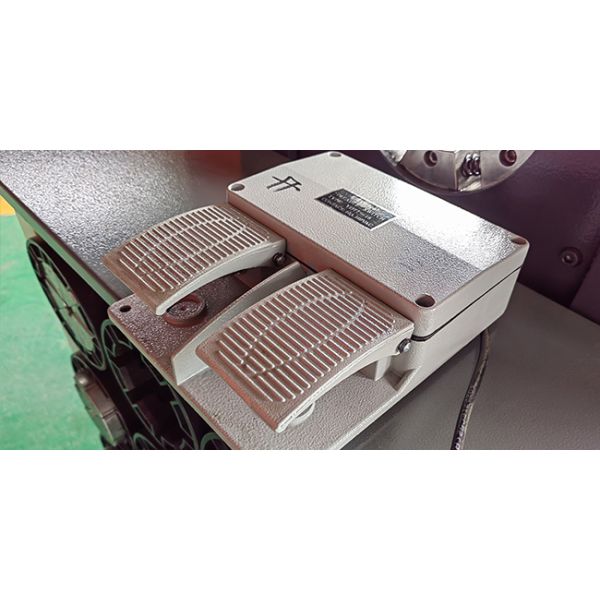

LARGE DOUBLE USE FOOT PEDAL
The foot pedal frees both of the operator's hands and improves working efficiency. With dual function controlling both closing and opening, it makes crimping hose assemblies much easier.
APPLICATION SHOW
P150 hose crimper machine is specially designed for hydraulic high pressure hose with big elbow fittings crimping. It is widely used in car AC hose, hydraulic oil hose, air hose, water pipe, industrial hoses, wires and cables crimping work.
